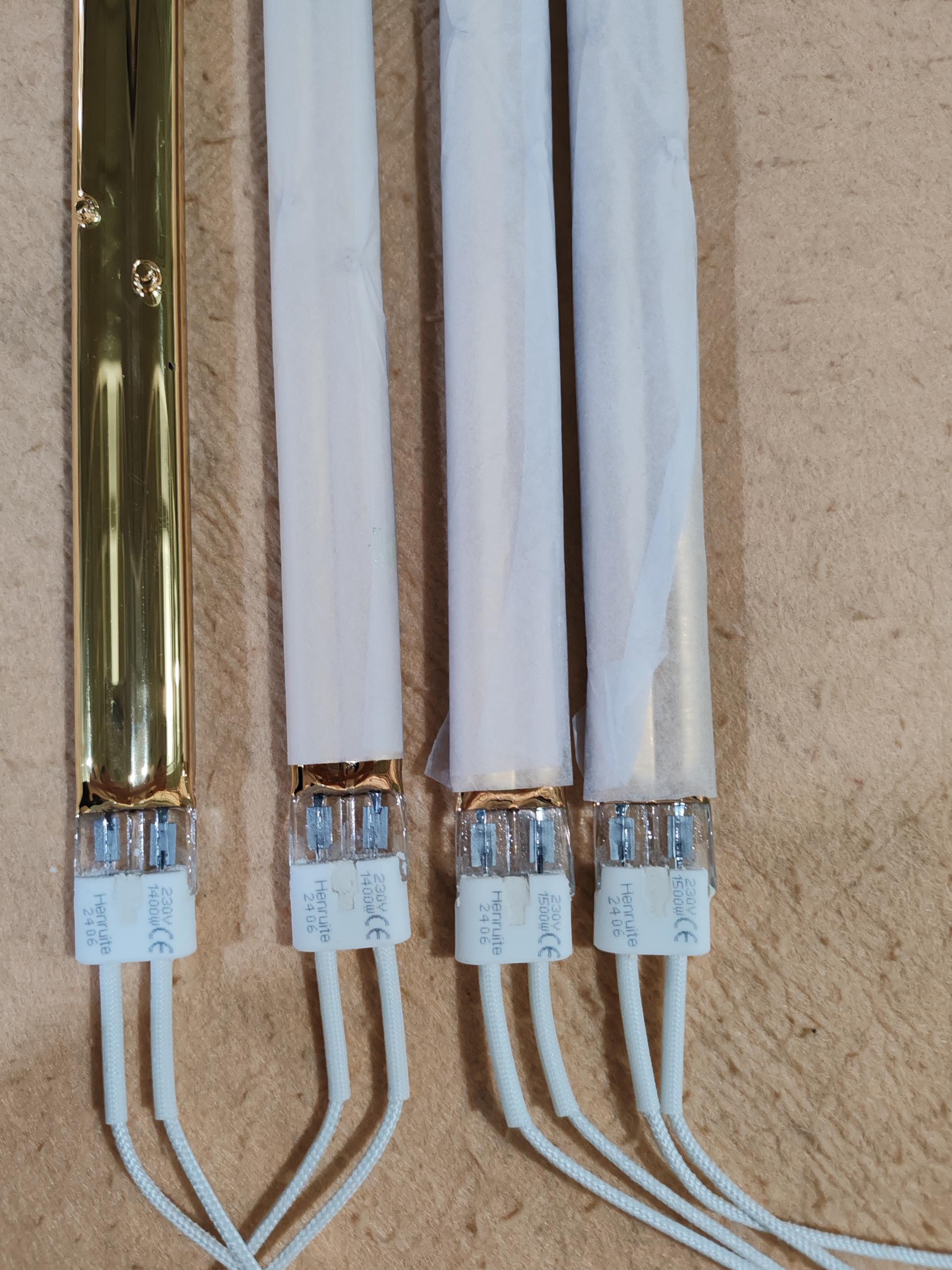

Let’s Talk Carbon Fiber Infrared Lamps
If you’re used to standard quartz halogen tubes, you know the drill. But these carbon fiber lamps? They’re a different beast. Instead of using a tungsten wire, we use a carbon fiber filament. Why does that matter? Because it changes how the heat actually hits your product. We build these specifically for when you need medium-wave radiation and a response time that doesn’t make you wait around.
What’s happening inside the lamp?
Inside that quartz envelope, there’s a carbon fiber weave doing all the heavy lifting. Tungsten has a habit of thinning out or shifting when things get screaming hot. Carbon fiber doesn’t really do that. It stays put. For you, that means the heat stays consistent for a lot longer. It hits that “sweet spot” of medium-wave emission. It digs deeper into your materials than short-wave heat does, but you don’t need a massive, clunky ceramic setup to make it work.
Power, heat, and a few warnings
When you flip the switch on a high-wattage carbon fiber element, it ramps up fast. Really fast. Your warm-up cycles basically vanish. But here’s the thing:don’t mess with the voltage. It’s tempting to over-volt the lamp to try and squeeze out a bit more heat, but that’s a one-way ticket to a burnt-out filament. Match your power supply exactly. Also, remember that while these lamps are workhorses, they’re still wrapped in quartz. Glass breaks. If your machinery shakes or vibrates a lot, use dampened mounts. It’s a small detail that saves you from a huge headache.
Putting them to work
We see these all over the place—PET bottle blowing, paint curing, drying lines. Since they’re lightweight and come in different lengths, they slide into tight spots where bulky heaters just won’t fit. If you’ve got an old heating array that’s wasting energy, these are a great way to swap things out and tighten up your efficiency. One last tip?Keep your reflectors clean. A layer of dust might not seem like a big deal, but it kills the projection. A quick wipe-down keeps the heat going exactly where it needs to go.
